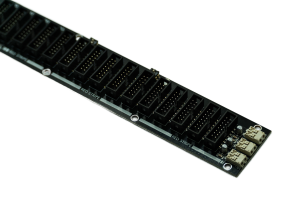

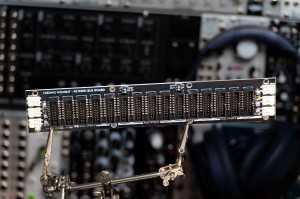

HS-105V2 - 15 Port Filtered Bus Board v2

With this filtered bus board, you can power up to 15 Eurorack-compatible modules. The board has three indicator LEDs that show whether the voltage rails are correctly connected. There are two capacitors per power rail near the quick-connect terminals on each side of the board to filter noise from the power supply or digital modules.

• Modular power supply: The board provides space for up to 15 Eurorack modules that can be powered simultaneously, ensuring that each module receives the necessary power.

• Indicator LEDs: The integrated indicator LEDs on the board provide clear visual feedback on the status of the voltage rails, so you can see at a glance if everything is correctly connected.

• Noise suppression: Thanks to the two capacitors per power rail near the quick-connect terminals on both sides of the board, noise from the power supply or digital modules is effectively filtered out. This ensures clean and interference-free sound production.

• Easy installation: The quick-connect terminals allow easy connection to your power supply. The M4 screw holes enable secure mounting in the case. Alternatively, the board can be fixed in the case with double-sided tape.

• Convenient bus: The CV and Gate pins of the module connections are connected in groups of five modules. With switches on the board, these groups can be interconnected.

Filter capacitors A total of twelve capacitors effectively filter out noise from the power supply and digital modules.	Status LEDs The status LEDs always show whether the bus board is correctly connected.

Quick connectors Use the quick connectors to easily connect the bus board to your power supply.	Reverse polarity protected connections Connect up to 15 modules via the reverse polarity protected connections.
